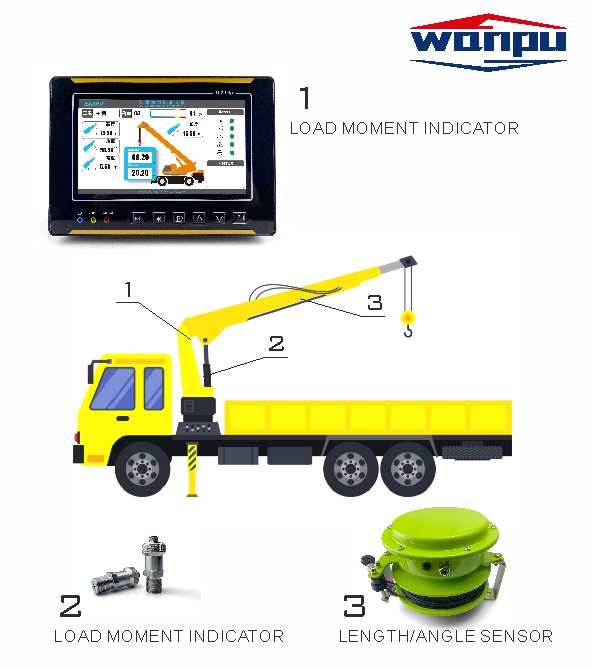

TRUCK MOUNTED CRANE LOAD MOMENT INDICATOR

folding-boom-crane-load-moment-indicator|crane-safety-device|truck-mounted-crane

---

1. Features
■Load charts can be programmed into the display.
■Use automatic compensation method for the force sensor.
■The display has a built-in processor, reducing the number of components to be installed in the crane cab.
■Can expand to the "black box" function, according to the users’ needs can   storage alarm record for a long time.
■The main interface using graphic display, sound and light alarm, automatic control.
■sensor for monitoring  radius.
■Instantaneous , height, radius and angular value.
■Instant load vs. limit load comparison.
■Special calibration by means of load diagram.
■Audible and visual warning.
■Anti-2-Block warning on screen.

■Adopted 7 inches LCD display.

---

2. Performance parameter
■ working voltage: DC24V
■ working temperature: -20 degrees to +70
■ storage temperature: -30 degrees Celsius to +80
■ system error: less than 5%, display error: less than 5%, the control error: less than 5%
■relay contact capacity: 5A AC24V
■communication interface: RS232, RS485 and Can bus
■ protection class: IP67 (other protection level to be customized);

■the maximum lifting torque: GR = 300000kN.m

---

3.Packing and Shipping

Wooden case or carton, shipping method as customer's request or our suggestion.

---

4.Installtion and Service
We can provide echnical guidance by email or phone for free;

We can also send our technician for local consultancy and training with service charge negotiable.

---

5.Warranty
Guarantee period is 12 months which is from the installation acceptance delivery date on. But except non-normal use, excessive supply voltage, and other external reasons.

---

How to choose products

Load Moment Indicator – LMI

For hydraulic cranes, the LMI reads its load value using a pair of pressure transducers, which read the cylinder pressures of the lift cylinders

Rated Capacity Indicator – RCI

On a Rated Capacity Indicator, the load weight value is calculated by reading the strain on the wire rope. This is done by using a load pin in a sheave, a running line tensiometer (linerider) or a dead-end load cell installed at the becket end. A digital load chart is also available to show load capacity.

Load Indicator – LI

This is the simplest form of load monitoring. Here, a strain gauge device is used to read the wire rope tension producing a load value. The load sensing device can be installed in line to the crane rigging or can be placed under hook.

What is crane load?

Each crane has a load chart that, in short, specifies the crane’s capabilities — detailing its features and how its lift capacity varies when considering distance and angle. … Before a crane is rented, transported, employed or purchased, the crane chart must be consulted.

What is a load moment indicator?

Load Moment (or Rated Capacity) Indicator means a system which aids the equipment operator by sensing (directly or indirectly) the overturning moment on the equipment, i.e., load multiplied by radius.

How does a load moment indicator work?

Using different sensing devices, the Load Moment Indicator monitors various crane functions and provides the operator with a continuous reading of the crane’s capacity. The readings continuously change as the crane moves through the motions needed to make the lift.
